guitar pedal controller Providence PEC-4V Programmable Effects SwitcherThe Providence PEC 4V is a new Programmable Effects Switcher. Up to four combinations of the four loops can be programmed and recalled instantly in the PROGRAM mode. The four loops can be directly turned on or off individually in the DIRECT mode. Loops 1 through 3 are connected in series (one after the other). Signal switching is accomplished via precision mechanical relays. When a loop is OFF the corresponding SND output is muted so that no signal is

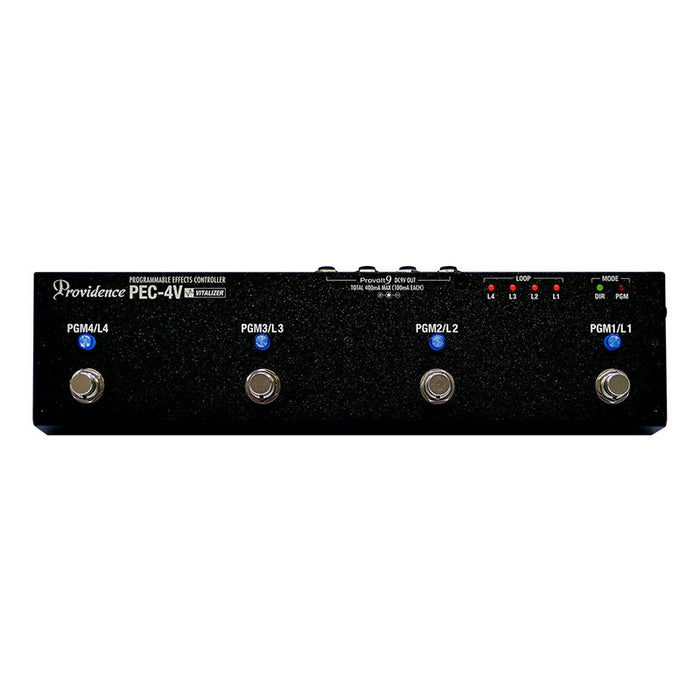

The Providence PEC-4V is a new Programmable Effects Switcher. Up to four combinations of the four loops can be programmed and recalled instantly in the PROGRAM mode. The four loops can be directly turned on or off individually in the DIRECT mode.

Loops 1 through 3 are connected in series (one after the other). Signal switching is accomplished via precision mechanical relays. When a loop is OFF the corresponding SND output is muted so that no signal is sent to the connected effect unit. This eliminates the possibility of unwanted oscillation due to crosstalk when high-gain effects are used. All loops are S.C.T (Single Contact True-bypass) type circuits, so when a loop is bypassed the signal passes through only a single relay circuit for maximum reliability and sound quality.

Loop 4 is totally independent, and uses the same type of precision mechanical relay as loops 1 through 3 for switching. In addition to functioning as an independent loop, the separate loop SEND jack can also be used as a latching N.C. (Normally Closed) switch, and the OUT jack can be used as latching N.O. (Normally Open) switch for remote amplifier channel switching. This loop is completely independent, right down to the ground line, so you can use it as a control switch without having to worry about ground loop problems. The separate loop can be used as a mute loop, an A/B switcher, and other utility functions. When the three series loops aren't enough for your system, you can patch the series loop OUT jack to the separate loop IN jack to provide a fourth series loop.

The Vitalizer circuit fed by this input “fortifies” the relatively weak guitar or bass signal without changing the signal level so that it is less susceptible to degradation.

• Power Supply: AC adaptor (PAP-812DC)
• Power Consumption: 8.2W (with DC9V Maximum Load)
• Dimensions (W x D x H): 290 x 70 x 32 ~ 40 mm (incl. jacks and switches)
• Weight: 780 grams, approx.
• Supplied Accessories: AC adaptor (PAP-812DC)
